Outdoor Street Light Pole
FEATURES
Outdoor street light pole also called outdoor street light post,led lamp post,street light lamp post outdoor,the shape could be tapered,octagonal,round,square etc.

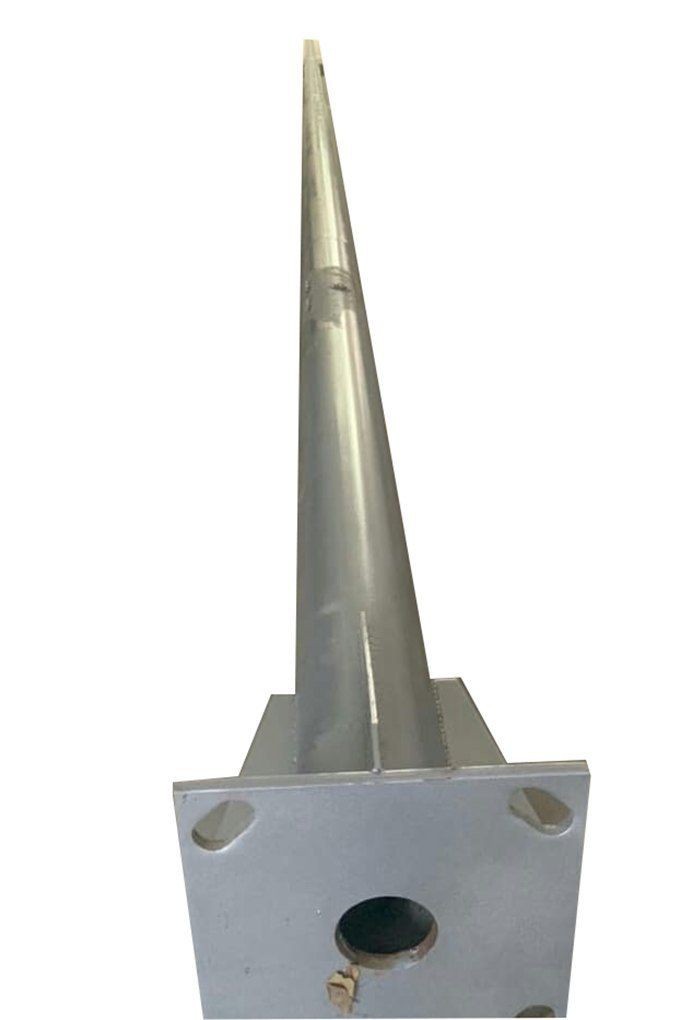

Outdoor street light pole is backbone of street lighting,and their use case extends from providing adequate lighting to the beautification of urban spaces,which is base plate mounted and hot dip galvanized to anti-rust and anti-corrosion after fabrication,then could be powder coated or painted in any colour you require.

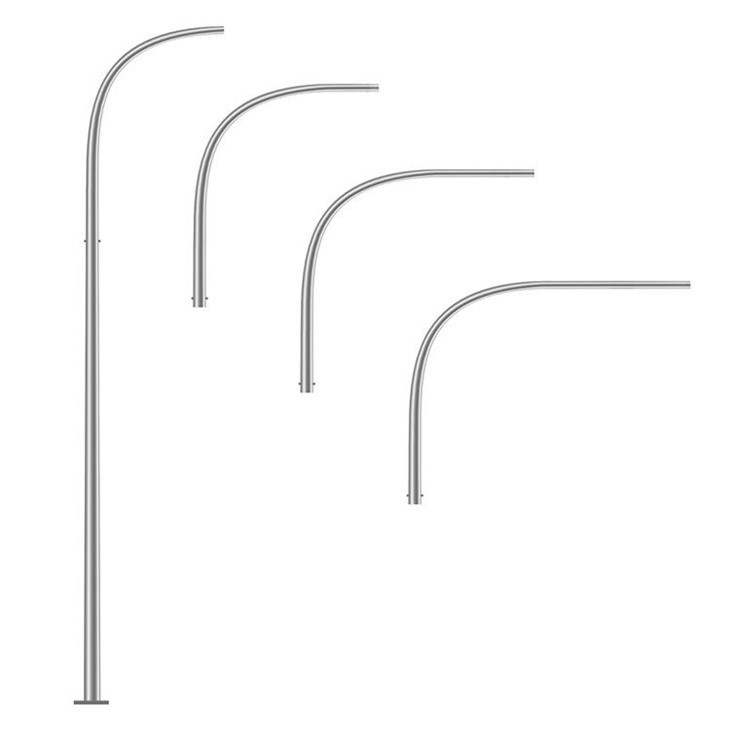

As a street light pole manufacturer, Forever Lighting offers various of outdoor street light poles, with mounting height ranging from 3m to 12m and different arm brackets.
DATASHEET
|
Height (H) |
Top OD (d) |
Bottom OD (D) |
Thickness (T) |
Door Size (mm) |
Base Plate (L×W×T) |
Plate Specs （mm） |
Wight(kgs) |
Curve Arm (mm) |
|
|
5m-16ft |
76mm |
130mm |
2.5mm |
80×200 |
240*12 |
1260mm |
42.6 |
1200*60*2.5mm |
|
|
6m-19ft |
60mm |
145mm |
2.75mm |
80×200 |
240*12 |
1260mm |
46.5 |
1500*60*2.5mm |
|
|
7m-23ft |
60mm |
165mm |
3.0mm |
100×200 |
260*14 |
695mm |
64.9 |
1500*60*2.5mm |
|
|
8m-26ft |
76mm |
150mm |
3.0mm |
100×200 |
280*14 |
695mm |
74.1 |
1800*60*2.5mm |
|
|
9m-29ft |
76mm |
170mm |
3.5mm |
120×260 |
320*16 |
760mm |
106.9 |
1800*60*2.5mm |
|
|
10m-33ft |
80mm |
185mm |
3.5mm |
120×260 |
350*16 |
810mm |
123.8 |
2000*60*2.5mm |
|
|
11m-36ft |
80mm |
200mm |
3.75mm |
120×350 |
350*16 |
875mm |
157.1 |
2500*60*2.5mm |
|
|
12m-39ft |
80mm |
205mm |
4.0mm |
120×350 |
400*18 |
875mm |
187.5 |
2500*60*2.5mm |
|
|
Tolerance of dimension |
±2/% |
||||||||
|
Minimum yield strength |
285Mpa |
||||||||
|
Max ultimate tensile strength |
415Mpa |
||||||||
|
Anti-corrosion performance |
Class II |
||||||||
|
Against earthquake grade |
10 |
||||||||
|
Color |
Customized |
||||||||
|
Surface treatment |
Hot-dip galvanized and electrostatic spraying, rust proof, anti-corrosion performance Class II |
||||||||
|
Shape Type |
Conical pole, Octagonal pole,Square pole, Round pole |
||||||||
|
Arm Type |
Customized: single arm,double arms,triple arms,four arms |
||||||||
|
Stiffener |
With big size to strength the pole to resist the wind |
||||||||
|
Powder coating |
Thickness of powder coating>100um.Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. |
||||||||
|
Wind Resistance |
According to local weather condition, general design strength of wind resistance is ≥150KM/H |
||||||||
|
Welding Standard |
No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. |
||||||||
|
Hot-Dip Galvanized |
Thickness of hot-galvanized>80um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 year. |
||||||||
|
Anchor bolts |
Optional |
||||||||
|
Material |
Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 and SS304 for optional. Aluminium,SS304 are also available |
||||||||
|
Passivation |
Available |
||||||||
|
REMARK: 1,Above outdoor street light pole dimension is common stand for AC street light pole,other dimension is available. 2,Customized outdoor street light pole dimension is available. 3,Solar street lamp post with bigger tapered pole dimension. |
|||||||||
APPLICATION
Forever Lighting Outdoor street light pole used in a variety of scenarios including:
● lPathways
● lParks
● lSchools
● lCar parks
● lSports fields
● lStreet
● lHighway etc.
Hot Tags: outdoor street light pole, China outdoor street light pole manufacturers, suppliers, factory, 10m Street Light Pole, street lamp post for garden, galvanised lamp post, Double Arm Steet Light Pole, 9 Meter Street Light Pole, electric street light pole
FAQ
What poles to use for outdoor street lights?
First of all,in terms of shape,there are tapered or conical,octagonal,round,square etc of poles to use for outdoor street lights.
Secondly,usually 3M-12M of pole height use for outdoor street lights.
Thirdly,the hot dip galvanized pole to anti rust and corrosion with longer lifespan is mainly for outdoor street lights.
Who manufactured street light poles?
FOREVER-LIGHTING manufactured street light poles,who owned advanced high tech full automatic numerical control mechanization production and inspection machines,so you will enjoy below superiority:
√ Strength the product quality.
√ Enhance the productivity.
√ Delivery on schedule.
√ Lower production cost and enjoy more pricing advantages.
