Led Street Light Pole

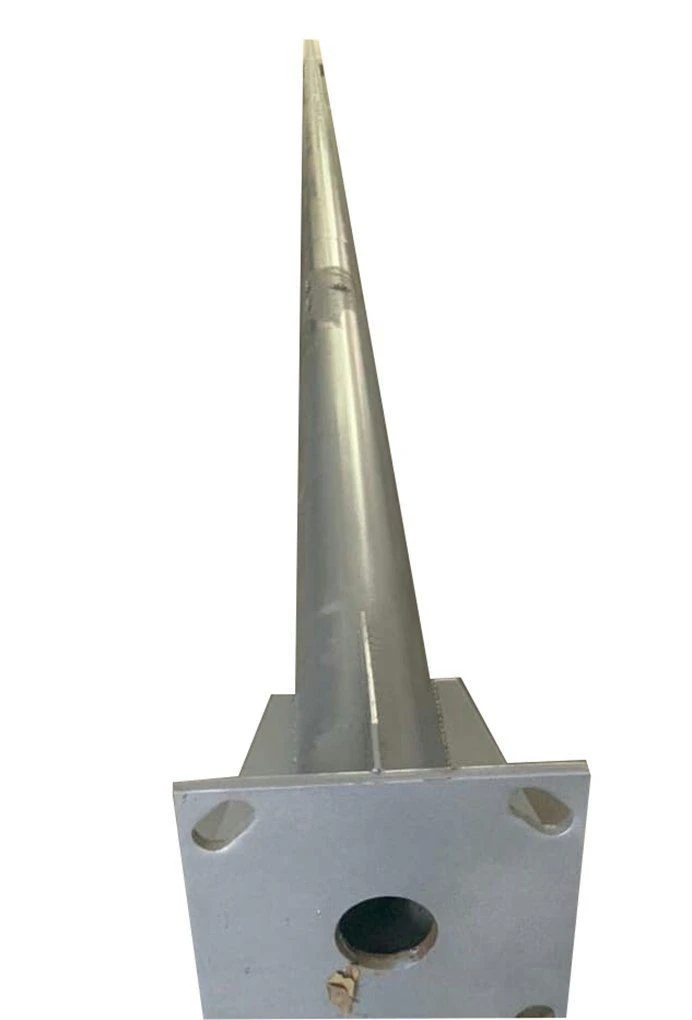

Forever Lighting offers a wide range of popular led street light pole designs in the industry,which mainly applied for street lighting,road lighting,highway lighting etc.The steel material with Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 and SS304 for optional.The following LED street light pole with bracket type is classical type with longer arm for illuminating wider space, which is especially popular with customers.
Parameter List

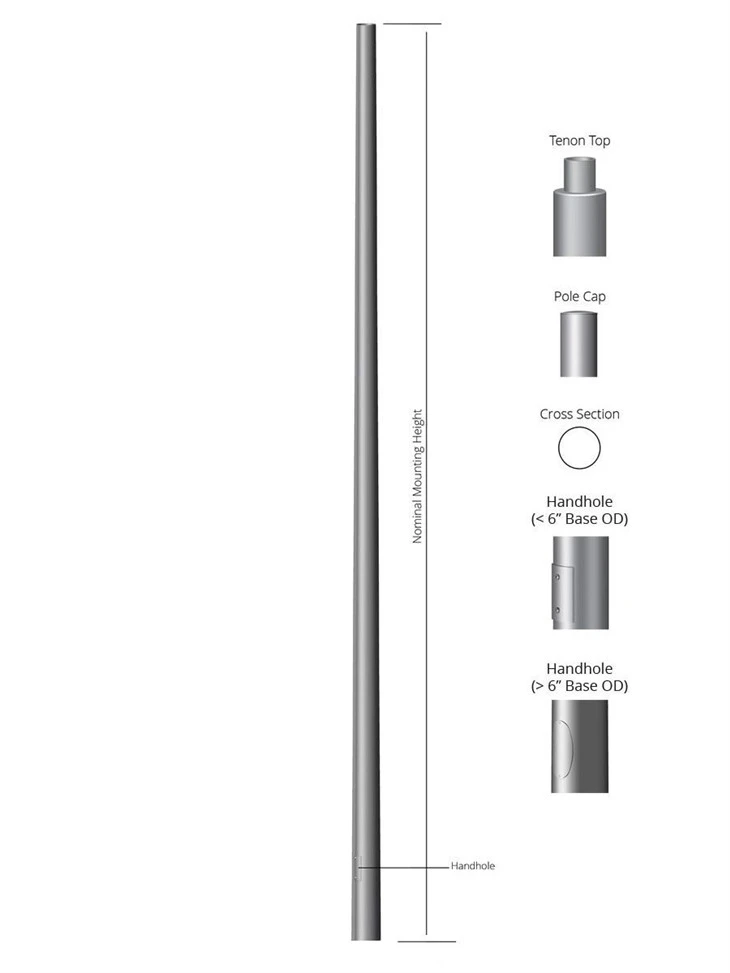

LED street light pole could be conical shape or octagonal shape or round shape or square shape etc,among them,the conical street light pole and the octagonal street light pole are common used.Below are some standard parameter list for choosing.
-Conical street light pole height range:
|
Height (H) |
Top OD (d) |
Bottom OD (D) |
Thickness (T) |
Door Size (mm) |
Base Plate (L×W×T) |
Plate Specs （mm） |
Wight(kgs) |
|
5m-16ft |
76mm |
130mm |
2.5mm |
80×200 |
240*12 |
1260mm |
42.6 |
|
6m-19ft |
60mm |
145mm |
2.75mm |
80×200 |
240*12 |
1260mm |
46.5 |
|
7m-23ft |
60mm |
165mm |
3.0mm |
100×200 |
260*14 |
695mm |
64.9 |
|
8m-26ft |
76mm |
150mm |
3.0mm |
100×200 |
280*14 |
695mm |
74.1 |
|
9m-29ft |
76mm |
170mm |
3.5mm |
120×260 |
320*16 |
760mm |
106.9 |
|
10m-33ft |
80mm |
185mm |
3.5mm |
120×260 |
350*16 |
810mm |
123.8 |
|
11m-36ft |
80mm |
200mm |
3.75mm |
120×350 |
350*16 |
875mm |
157.1 |
|
12m-39ft |
80mm |
205mm |
4.0mm |
120×350 |
400*18 |
875mm |
187.5 |
|
REMARK: 1,Above dimension is common stand for AC LED street light pole,other dimension is available. 2,Customized dimension is available. 3,Solar light pole with bigger dimension. |
|||||||
-Octagonal street light pole height range:
|
Height (H) |
Top OD (d) |
Bottom OD (D) |
Thickness (T) |
Door Size (mm) |
Base Plate (L×W×T) |
Plate Specs （mm） |
Wight(kgs) |
|
6m-19ft |
70mm |
135mm |
3.5mm |
80×200 |
240*12 |
1260mm |
57.5 |
|
7m-23ft |
70mm |
135mm |
3.5mm |
100×200 |
260*14 |
1260mm |
67.1 |
|
8m-26ft |
76mm |
155mm |
3.5mm |
100×200 |
280*14 |
695mm |
85.0 |
|
9m-29ft |
76mm |
175mm |
3.5mm |
120×260 |
320*16 |
760mm |
106.9 |
|
10m-33ft |
80mm |
190mm |
4.0mm |
120×260 |
350*16 |
810mm |
142.6 |
|
11m-36ft |
80mm |
210mm |
4.0mm |
120×350 |
350*16 |
875mm |
166.5 |
|
12m-39ft |
80mm |
210mm |
4.0mm |
120×350 |
400*18 |
875mm |
187.5 |
|
REMARK: 1,Above dimension is common stand for AC led street light pole,other dimension is available. 2,Customized dimension is available. 3,Solar light pole with bigger dimension. |
|||||||
Production Superiority
FOREVER-LIGHTING owned advanced high tech full automatic numerical control mechanization production and inspection machines,adding HDG and spraying treatment to make our street light poles enjoy sole superiority in the steel pole industry .
√ High precision: the positioning accuracy of laser cutting is 0.05mm, and the repeated positioning accuracy is 0.02mm.
√ Narrow slit: the incision width is generally 0.10 ~ 0.20mm.
√ The cutting surface is smooth: the roughness of the incision surface is generally controlled within Ra12.5.
√ Fast speed, Fast speed: the laser cutting speed can reach 10m/min, the maximum positioning speed can reach 70m/min.
√ Good quality, no damage.
Precision welding,makes the street light pole with small weld, high efficiency and uniform, beautiful appearance.
Inside and outside surface anti-corrosion treatment by hot dip galvanized more than 80um thickness, which is in accordance with GB/T13912-92 standard.Hot-dip galvanizing prevents rust and corrosion when the street light pole exposes to air.
With both 360°machine and manual spraying to make led street light poles strong adhesion & strong Anti-ultraviolet. The surface is not peeling even with blade scratch (smooth, color and luster are identical.).Various colors for option.
Optional LED lamp
Nikola Series LED street light
Edison Series LED street light
Holonyak Series LED street light
Modular Series LED street light
Richard Series LED street light
Haytham Series LED street light
Hot Tags: led street light pole, China led street light pole manufacturers, suppliers, factory, led street lamp post, street lamp post for garden, solar street lamp post, Square Pole, outdoor street light post, Solar Street Light Pole
FAQ
1,How high should LED streetlight poles be?
Forever Lighting offers LED street light pole typical height range from 15 to 40 feet(4 to 12mtrs). Residential areas often requires shorter poles,usually ranging from 15 to 25 feet (4.5 to 7.5 mtrs).
Urban and commercial areas may require taller poles, ranging from 25 to 40 feet (8 to 12 mtrs).
2,What is the best material for street light poles?
There are many kinds of materials for street light poles, such as wood, steel, aluminum and stainless steel, but at present, steel is still the most economical and practical choice on the market because of its durability and strength,and offers robust support to withstand heavy wind loads and harsh weather conditions.
At the same time,steel poles are often hot dip galvanized and powder coated to provide additional protection against rust and corrosion, enhancing their longevity.
