Endurance Solar Street Lights

The Endurance solar street light is a durable and efficient outdoor lighting solution powered by solar energy. It is designed to provide bright and reliable illumination for streets, pathways, parking lots, and other outdoor areas.Its durable construction and energy-efficient design make it a suitable option for a wide range of applications, ensuring safety and visibility at night.
Send Inquiry
Operation Of Endurance Solar Street Lights



The Endurance solar street light is a durable and efficient outdoor lighting solution powered by solar energy. It is designed to provide bright and reliable illumination for streets, pathways, parking lots, and other outdoor areas.Its durable construction and energy-efficient design make it a suitable option for a wide range of applications, ensuring safety and visibility at night.

The operation of endurance solar street lights as below picture:

product-1779-923



Design Factors of Endurance Solar Street Light



► Design Factors

product-160-160

product-205-205

product-182-182

product-128-134

product-131-132

product-140-131

product-138-138

Shading Factor

Latitude

Weather

Dust

Wind Speed

Temperature

Humidity



► Solar Conditions



Annual Averaged Insolation Incident On A Horizontal Surface (kWh/m2/day)

22-year Average

Oceania

Asia

Africa

America

Europe

5.343

4.979

5.415

5.322

3.497

Equivalent Number Of NO-SUN Or BLACK Days (days)

7 day Average

Oceania

Asia

Africa

America

Europe

3.468

2.847

2.388

2.782

3.474

150W Solar LED Street Light Specification

►The solar street light wattage range is from 30W to 150W as project’s needs,but the current solar technology,the max is 200W LED power.This sheet is for 150W solar led street light specification based on 10-12hrs lighting time/night*2 continuous rainy days and average solar radiation condition’s 5.0KWH/M²/day of Africa and Middle East.

And 150w is powerful solar street light for big roads’ lighting.

Components

150W Solar led Street Light specs

Life Span

QTY

1

Solar Panel

2pcs*250W/18V),Mono Crystalline,>22.12% Efficiency.

>25years

1pc

2

LED Lamp

150W-24V,Phillips Lumileds 3030,160LM/W,3700K-6500K,IP66-IP68

>80,000hrs

1pc

3

Lighting Pole

10M or 11M or 12M conical,single arm,Q235 Steel,Hot dip galvanized,Powder coating,Rust Proof.

>25years

1pc

4

Solar Panel Bracket

Detachable,Q235 steel,Hot dip galvanized,Powder coating,Rust Proof.

>25years

1pc

5

Foundation Kit

Detachable,Q235 steel.

>25years

1pc

6

Charge Controller

25A, Automatic dusk to dawn auto dimming

>8years

1pc

8

Battery

Option 1:200AH/12V*2PCS GEL battery,Free Maintenance,Deep cycle,Gel type.

>10years

1pc

Option 2: 120AH/25.6V LifePO4 battery,Lighter Weight,Longer Cycle Lifespan,Lithium type.

5~10years

1pc

9

Battery Box

GEL battery:Underground battery box

>5years

1pc

Lithium battery:top or hang on the pole,hold 1 battery.

>10years

1pc

10

Cables

2*1.5mm²,from LED lamp to controller

>20years

3-8M

2*4mm²,from solar panel to controller



2-8M

2*4mm²,from solar battery to controller



2-5M

● Working :10-12hrs/night at intelligent working mode*2 overcast days,5.0KWH/M²/day.

● Noted:pole height 3M to 12M for solar street light choosing,15M-50M for high mast pole.

● LED power 15W to 200W for solar street light choosing.

● Customized design is available.

● Solar street light with remote function is optional.



Main Components Features and Benefits

►LED LAMP:150W street light with Philips/Cree chip,super bright for 150w street light




● 12V/24V DC

● Philips LED chip efficiency >160lm/W.

● CRI: >75Ra

● Color Temp.: 2700k-6500k (optional ).

● No mercury content, according to RoHS Standard

● Housing Material: Die-casting aluminum

● High purity tempered glass

● Easy to replace luminaire elements are allowed

● Life Span is more than 80,000 hours

● Warranty 5 years

● Standard CE/ROHS/IP66/IK10/IEC/EN/IES/LM80

product-1073-776



► SOALR PANEL:250W,mono-crystalline PV module with higher efficiency


● A+ grade Mono crystalline silicon

● Integrated diodes to prevent reserve current

● IP66 rating and strong anti-aging to last > 25 years.

● Adopt ultra white low-iron toughened glass with 98% light transmittance, which can resist hail stone and impact of ice and snow with max 5400Pa.

● Factors (25% losses) have been applied to considering the dirty, power decay losses and angle losses in winter time.

● The efficiency of the solar panels is up to max 22.5%.

● Standard TUV/CQC/IEC

product-1054-843

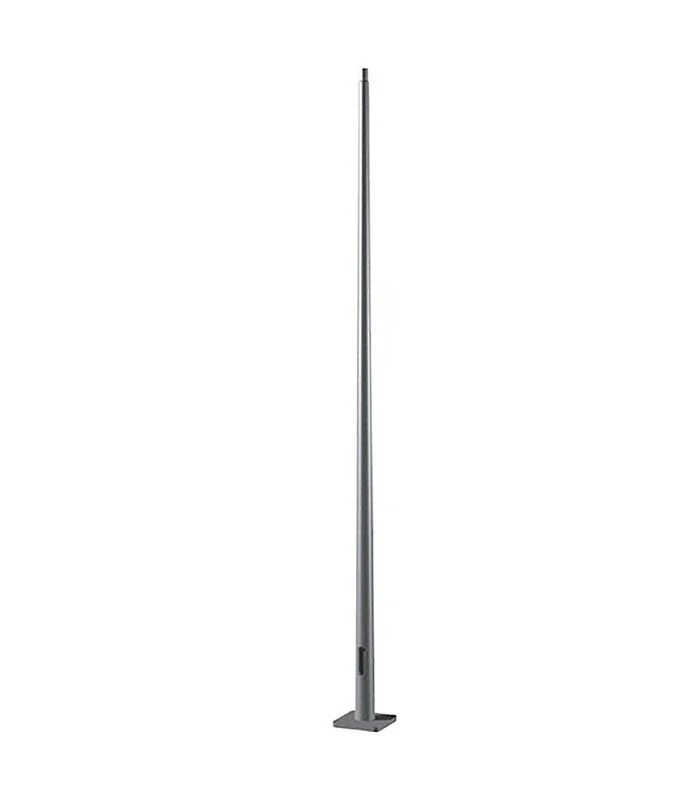

► STREET LIGHT POLE:for 150w brightest solar street lights;10-12M pole height is available


● Material:Commonly Q235B/A36,but Q345B/A572,Q460,

ASTM573 GR65, GR50 ,SS400, SS490, ST52 for optional

● Welding: No crack, no leakage welding or bite edges.

Smooth welding without the concavo-convex fluctuation or any welding defects.

● Hot Dip Galvanizing: Inside and outside surface

anti-corrosion treatment by hot dipping acid. Zinc coating is more than 86 um thick, which is in accordance with GB/T13912-92 standard. And the galvanized surface is smooth and with the same color. Flake peeling doesn’t exist after maul test.

● Powder Coating : Strong adhesion & strong Anti-ultraviolet. The surface is not peeling even with blade scratch (smooth, color and luster are identical.)

product-1024-1024



► CHARGE CONTROLLER:MPPT/PWM/HYBRID for optional


● 12/24V DC automatically according to the system

● Timing Control system which allows to change the configuration setting, including light performance level, power and stage-length. This system allows to save energy in order to increase the lifespan of the batteries

● Automatic turn on/off and modify the timer and dimming function

● Over charging/discharging protection

● Waterproof IP68 rating

● Standard CE/ROHS

product-1060-498



►SOLLAR BATTERY:gelled/lead-acid type,and LifePO4/ternary lithium battery for option




● Higher cycle,Maintenance free,sealed type

● Higher energy density & Fast recovery in deep cycle

● High pressure die cast spine grids

● Proven cycling & deep cycling capacities

product-540-203



ANCHOR BOLTS :optional






● Anchor bolts buried underground by concrete make the whole solar street light set more strong.

● The material of anchor bolts is engineering steel Q235,hot-dip galvanized/non galvanized for alternative, non galvanized.

● Folding anchor bolts to save the space is available.

product-285-321



SOALR PANEL BRACKET:3 types commonly used,customized is available


product-326-326



product-326-326



product-326-326



BATTERY BOX POSITION:


product-800-600



product-800-600



Customized Solar Lighting Solution For Local Project

To perform a Dialux simulation of a solar street light is important for solar lighting projects by configuring the solar street light parameters, including the light output, efficacy, beam angle, and light distribution etc.

Accurate representation of the illuminance levels and lighting uniformity on the street and surrounding areas.Analyze the simulation results to verify that the solar street light meets the specified lighting requirements.

Contact Yangzhou Forever Lighting Co.ltd,we will provide you most suitable powerful and brightest solar street lights.



product-799-488

product-1060-603



Hot Tags: endurance solar street lights, China endurance solar street lights manufacturers, suppliers, factory, Endurance Solar Street Lights, 150w solar led street light, powerful solar street lights, brightest solar street lights, 150w Design solution

FAQ



What’s the brightest solar street lights?

The brightness of a solar street light can vary, depending on the model and specifications. It is important to consider factors such as the size of the street or area you want to illuminate, the desired level of brightness, and the specific requirements of your project when selecting a solar street light.So the most suitable solar street light for your specific requirement is brightest solar street lights.



What’s the powerful solar street light?

A powerful solar street light typically refers to a solar street light with a high lumen output and long-lasting battery.

Here are some key features to consider when looking for a powerful solar street light:

► High lumen output: Look for a solar street light with a higher lumen output as it will provide brighter illumination. Lumen output is measured in lumens and represents the total amount of visible light emitted by the light source. A higher lumen output will ensure better visibility and coverage on the street.

► Efficient solar panels: Choose a solar street light with high-efficiency solar panels to capture more sunlight and convert it into electricity. Efficient solar panels will ensure that the battery is charged optimally, maximizing the lighting performance of the street light.

► High-capacity battery: Look for a solar street light with a high-capacity battery to ensure longer working hours and uninterrupted lighting during the night. A powerful street light should have a battery capable of storing enough energy to provide illumination throughout the night, even during winter or cloudy days.

► Durable construction: Consider the durability and weather resistance of the solar street light. Look for lights made from high-quality materials that can withstand harsh weather conditions, such as heavy rain, snow, or extreme temperatures. A durable construction ensures a longer lifespan and reliable operation.

► Advanced control and energy-saving features: Some powerful solar street lights come with advanced control features, such as motion sensors, dimming functions, and smart timers.

These features help optimize energy consumption by adjusting the brightness levels based on the surrounding conditions or human presence. They can also extend the battery life and make the light more efficient.Pls contact Yangzhou Forever Lighting Co.,ltd manufacturer to find the most suitable powerful solar street light for your specific requirements.
