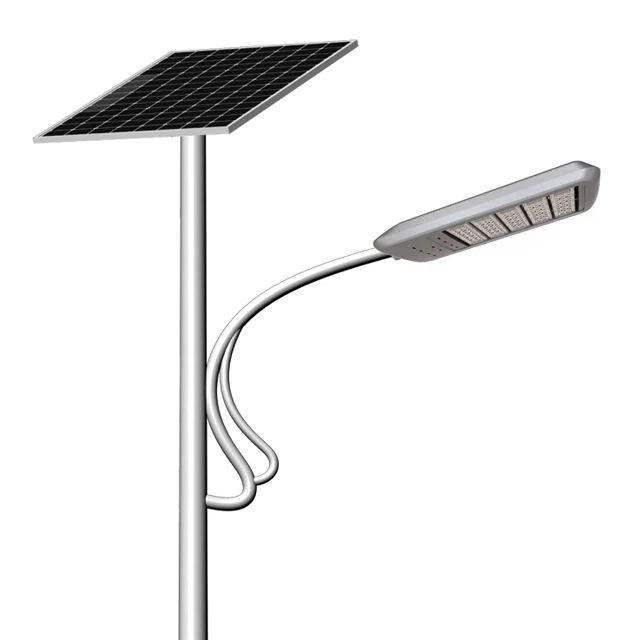

150W Solar Street Light
The Advantages Of 150W Solar Street Light
The 150W solar street light is a fantastic option for anyone looking to upgrade their outdoor lighting. Its combination of power, efficiency, and durability make it a top choice for illuminating streets and outdoor spaces.
A 150w solar led street light is a powerful option that can provide ample lighting for streets, highways,parking lots, and other outdoor areas. With its high wattage, this led solar street light 150w is able to illuminate a large area effectively, making it a great choice for areas that require bright and consistent lighting throughout the night.
Any inquiry of 150w led solar street light for your outdoor lighting needs,welcome to contact Yangzhou Forever Lighting Co.,ltd .
Design Factors of Endurance Solar Street Light
► Design Factors
|
|
|
|
|
|
|
|
|
Shading Factor |
Latitude |
Weather |
Dust |
Wind Speed |
Temperature |
Humidity |
► Solar Conditions
|
Annual Averaged Insolation Incident On A Horizontal Surface (kWh/m2/day) |
|||||||||||
|
22-year Average |
Oceania |
Asia |
Africa |
America |
Europe |
||||||
|
5.343 |
4.979 |
5.415 |
5.322 |
3.497 |
|||||||
|
Equivalent Number Of NO-SUN Or BLACK Days (days) |
|||||||||||
|
7 day Average |
Oceania |
Asia |
Africa |
America |
Europe |
||||||
|
3.468 |
2.847 |
2.388 |
2.782 |
3.474 |
|||||||
150W Solar LED Street Light Specification
►The solar street light wattage range is from 30W to 150W as project's needs,but the current solar technology,the max is 200W LED power.This sheet is for 150W solar led street light specification based on 10-12hrs lighting time/night*2 continuous rainy days and average solar radiation condition's 5.0KWH/M²/day of Africa and Middle East.
And 150w is powerful solar street light for big roads' lighting.
|
Components |
150W Solar led Street Light specs |
Life Span |
QTY |
|
|
1 |
Solar Panel |
2pcs*250W/18V),Mono Crystalline,>22.12% Efficiency. |
>25years |
1pc |
|
2 |
LED Lamp |
150W-24V,Phillips Lumileds 3030,160LM/W,3700K-6500K,IP66-IP68 |
>80,000hrs |
1pc |
|
3 |
Lighting Pole |
10M or 11M or 12M conical,single arm,Q235 Steel,Hot dip galvanized,Powder coating,Rust Proof. |
>25years |
1pc |
|
4 |
Solar Panel Bracket |
Detachable,Q235 steel,Hot dip galvanized,Powder coating,Rust Proof. |
>25years |
1pc |
|
5 |
Foundation Kit |
Detachable,Q235 steel. |
>25years |
1pc |
|
6 |
Charge Controller |
25A, Automatic dusk to dawn auto dimming |
>8years |
1pc |
|
8 |
Battery |
Option 1:200AH/12V*2PCS GEL battery,Free Maintenance,Deep cycle,Gel type. |
>10years |
1pc |
|
Option 2: 120AH/25.6V LifePO4 battery,Lighter Weight,Longer Cycle Lifespan,Lithium type. |
5~10years |
1pc |
||
|
9 |
Battery Box |
GEL battery:Underground battery box |
>5years |
1pc |
|
Lithium battery:top or hang on the pole,hold 1 battery. |
>10years |
1pc |
||
|
10 |
Cables |
2*1.5mm²,from LED lamp to controller |
>20years |
3-8M |
|
2*4mm²,from solar panel to controller |
|
2-8M |
||
|
2*4mm²,from solar battery to controller |
|
2-5M |
||
|
● Working :10-12hrs/night at intelligent working mode*2 overcast days,5.0KWH/M²/day. ● Noted:pole height 3M to 12M for solar street light choosing,15M-50M for high mast pole. ● LED power 15W to 200W for solar street light choosing. ● Customized design is available. ● Solar street light with remote function is optional. |
||||

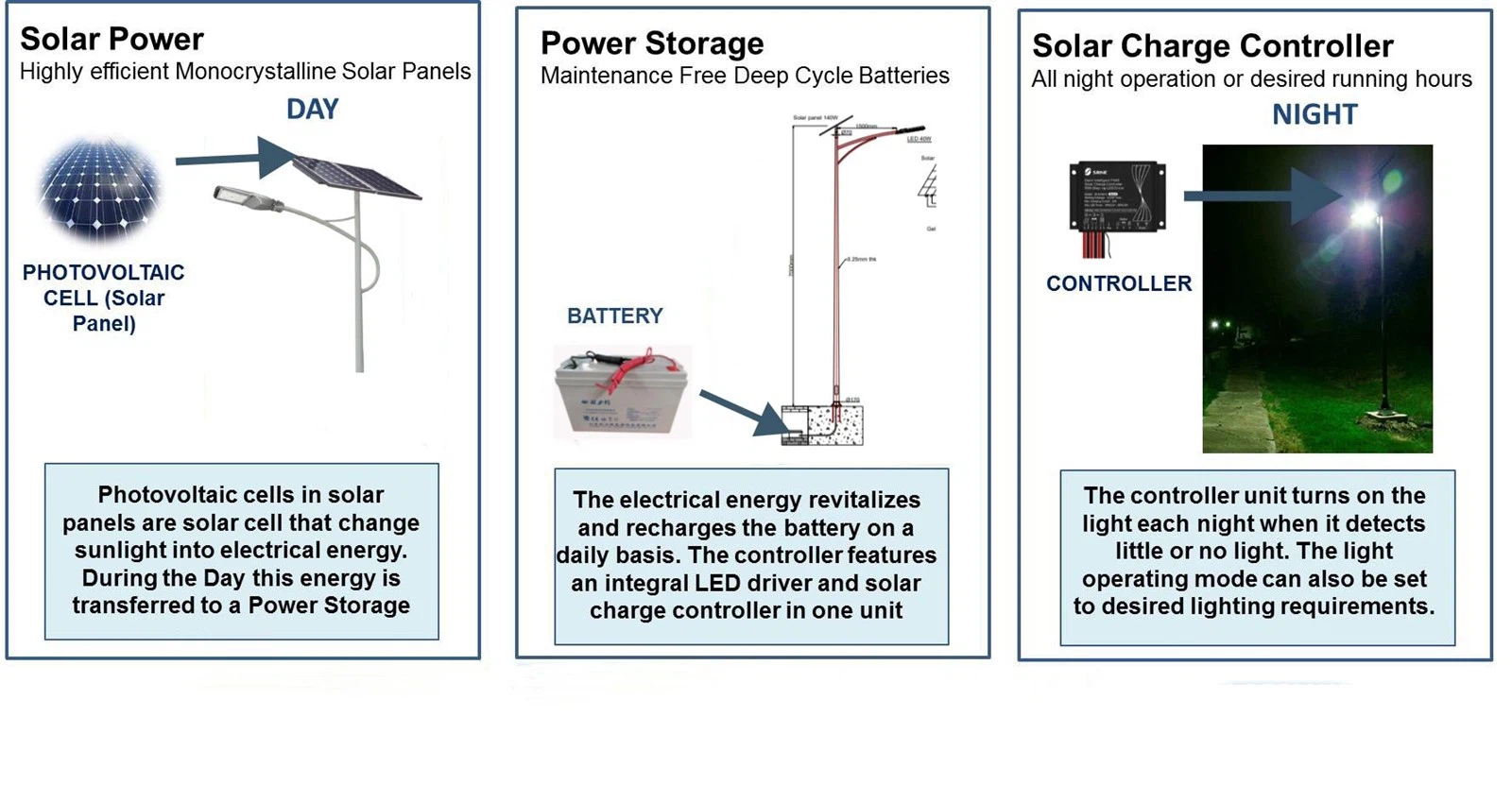

Main Components Features and Benefits
|

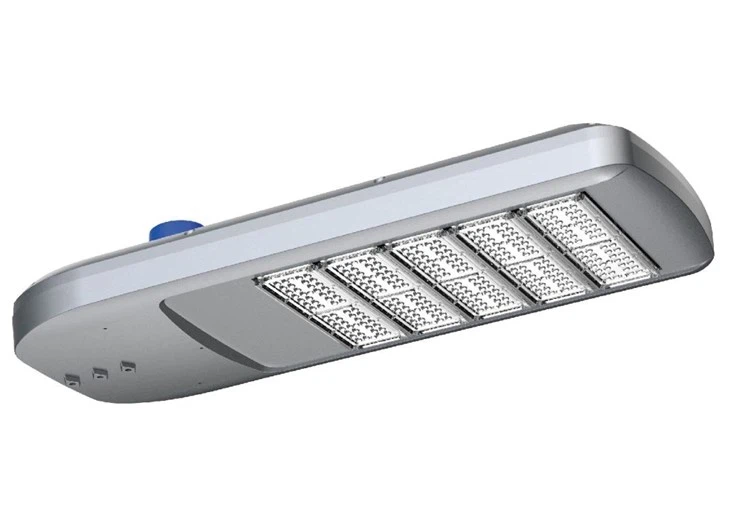

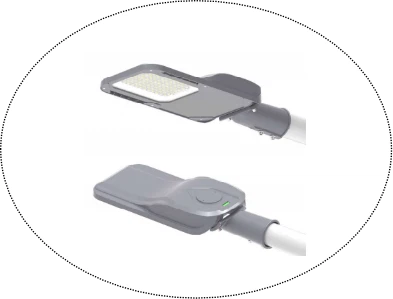

LED LAMP:30-200W power with Philips/Cree chip,super bright for choosing This led lamp is designed by experienced expert and controlled by strict quality system, integrate endurable structure and perfect design to keep its lifespan long, energy consumption low and costs down, meet a vast majority of challenging roadway and street lighting applications and optimize its lighting performance beyond the previous products. ● 12V/24V DC ● Philips LED chip efficiency >160lm/W. ● CRI: >75Ra ● Color Temp.: 2700k-6500k (optional ). ● No mercury content, according to RoHS Standard ● Housing Material: Die-casting aluminum ● High purity tempered glass ● Easy to replace luminaire elements are allowed ● Life Span is more than 80,000 hours ● Warranty 5 years ● Standard CE/ROHS/IP66/IK10/IEC/EN/IES/LM80 |
 |
|||
 |

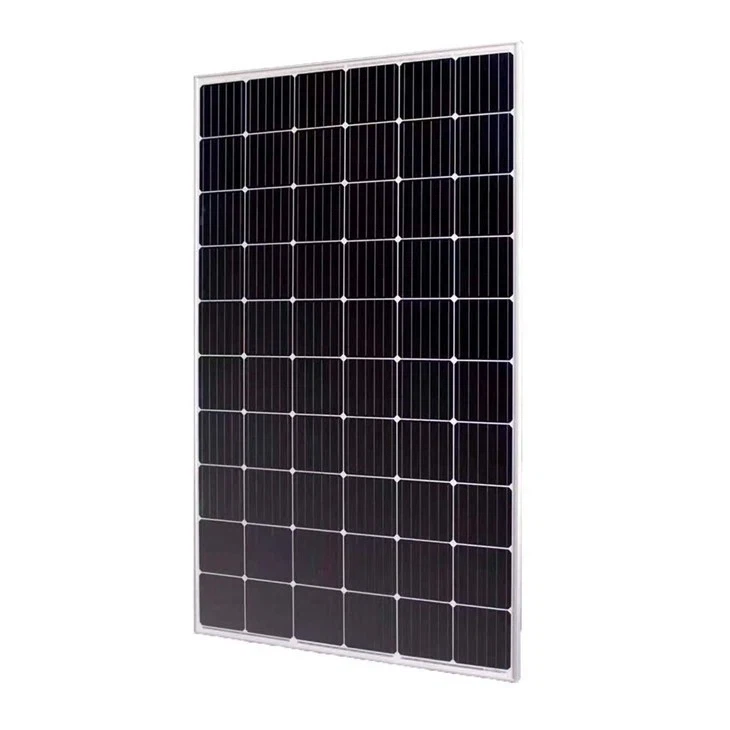

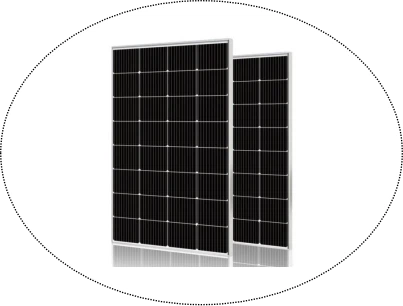

SOALR PANEL:100W to 545W,mono-crystalline PV module with higher efficiency Factors (25% losses) have been applied to considering the dirty, power decay losses and angle losses in winter time. IP68 junction box; aluminium frame tempered glass; Lifespan:20-25 years; Warranty:12 years. ● A+ grade Mono crystalline silicon ● Integrated diodes to prevent reserve current ● IP66 rating and strong anti-aging to last > 25 years. ● Adopt ultra white low-iron toughened glass with 98% light transmittance, which can resist hail stone and impact of ice and snow with max 5400Pa. ● Factors (25% losses) have been applied to considering the dirty, power decay losses and angle losses in winter time. ● The efficiency of the solar panels is up to max 22.5%. ● Standard TUV/CQC/IEC
|
|||
|
SOALR PANEL BRACKET:3 types commonly used, customized is available
|
||||
|
STREET LIGHT POLE:3M-12M for optional We have conical pole, octagonal pole, round pole, etc for support solar light system for your alternative. ● Material:Commonly Q235B/A36,but Q345B/A572, Q460, ASTM573 GR65, GR50 ,SS400, SS490, ST52 for optional ● Welding: No crack, no leakage welding or bite edges. ● Smooth welding without the concavo-convex fluctuation or any welding defects. ● Hot Dip Galvanizing: Inside and outside surface anti-corrosion treatment by hot dipping acid. Zinc coating is more than 86 um thick, which is in accordance with GB/T13912-92 standard. And the galvanized surface is smooth and with the same color. Flake peeling doesn't exist after maul test. ● Powder Coating: Strong adhesion & strong Anti-ultraviolet. The surface is not peeling even with blade scratch (smooth, color and luster are identical.)
|
 |
|||
|

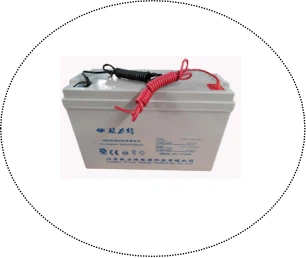

SOLLAR BATTERY:gelled/lead-acid type,and LifePO4/ternary lithium battery for option
|
||||
 |
 |
|||
|
Solar battery is one main key part in solar street lighting,it is related whole solar street light set lifespan,so we used extreme quality solar battery with higher cycle,higher energy density &fast recovery in deep cycle ,maintenance free,high pressure die cast spine grids ,proven cycling & deep cycling capacities etc advantages.
|
||||
|
BATTERY BOX POSOTION:4 types commonly used, customized is available
|
||||
|
|
|
|||
|

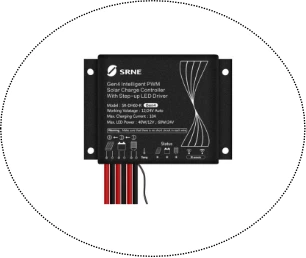

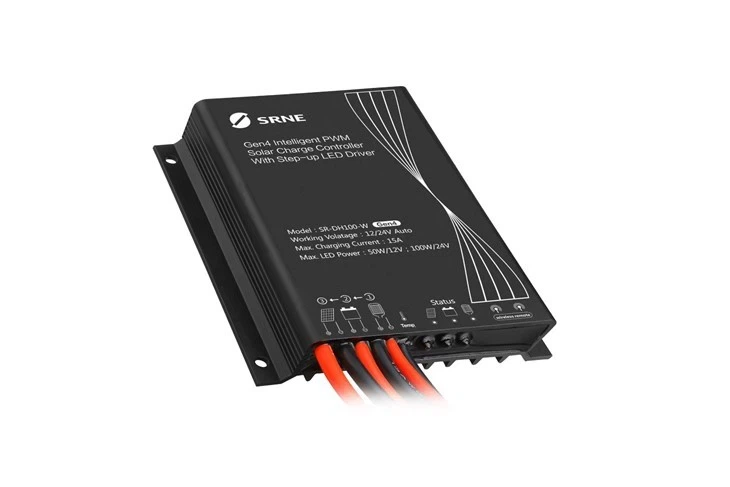

MPPT CONTROLLER:MPPT/PWM for optional(Hybrid type for hybrid solar street light is available )
|
||||
 |
 |
|||
|
Charge controller is the "CPU" of the solar led street lighting,we use famous brand SRNE charge controller,it's intelligent micro-computer controller,with automatic light and time control function,and priority of temperature compensation,over-charging/discharging protection,reverse-connection protection.
|
||||
|
|
ANCHOR BOLTS: optional Anchor bolts buried underground by concrete make the whole solar street light set more strong. The material of anchor bolts is engineering steel Q235,hot-dip galvanized/non galvanized for alternative,non galvanized.Folding anchor bolts to save the space is available. |
|||
|

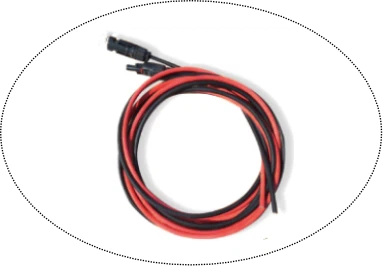

PV CABLE (with MC4 connector optional) |
 |
|||
Customized Solar Lighting Solution For Local Project
To perform a Dialux simulation of a solar street light is important for solar lighting projects by configuring the solar street light parameters, including the light output, efficacy, beam angle, and light distribution etc.
Accurate representation of the illuminance levels and lighting uniformity on the street and surrounding areas.Analyze the simulation results to verify that the solar street light meets the specified lighting requirements.
Contact Yangzhou Forever Lighting Co.ltd,we will provide you most suitable powerful and brightest solar street lights.
Hot Tags: 150w solar street light, China 150w solar street light manufacturers, suppliers, factory, Eletric Street Light, cost of high mast light, high mast pole with led flood lighting, Waterproof Street Light, 20 Meter High Mast Pole, 200 watt led street light
FAQ
What's the brightest solar street lights?
The brightness of a solar street light can vary, depending on the model and specifications. It is important to consider factors such as the size of the street or area you want to illuminate, the desired level of brightness, and the specific requirements of your project when selecting a solar street light.So the most suitable solar street light for your specific requirement is brightest solar street lights.
What's the powerful solar street light?
A powerful solar street light typically refers to a solar street light with a high lumen output and long-lasting battery.
Here are some key features to consider when looking for a powerful solar street light:
► High lumen output: Look for a solar street light with a higher lumen output as it will provide brighter illumination. Lumen output is measured in lumens and represents the total amount of visible light emitted by the light source. A higher lumen output will ensure better visibility and coverage on the street.
► Efficient solar panels: Choose a solar street light with high-efficiency solar panels to capture more sunlight and convert it into electricity. Efficient solar panels will ensure that the battery is charged optimally, maximizing the lighting performance of the street light.
► High-capacity battery: Look for a solar street light with a high-capacity battery to ensure longer working hours and uninterrupted lighting during the night. A powerful street light should have a battery capable of storing enough energy to provide illumination throughout the night, even during winter or cloudy days.
► Durable construction: Consider the durability and weather resistance of the solar street light. Look for lights made from high-quality materials that can withstand harsh weather conditions, such as heavy rain, snow, or extreme temperatures. A durable construction ensures a longer lifespan and reliable operation.
► Advanced control and energy-saving features: Some powerful solar street lights come with advanced control features, such as motion sensors, dimming functions, and smart timers.
These features help optimize energy consumption by adjusting the brightness levels based on the surrounding conditions or human presence. They can also extend the battery life and make the light more efficient.Pls contact Yangzhou Forever Lighting Co.,ltd manufacturer to find the most suitable powerful solar street light for your specific requirements.
