80w Solar Street Light
video

80w Solar Street Light

The operation of solar street light involves the conversion of sunlight into electrical energy through the solar panels installed on the top of the light pole. These panels absorb the sunlight during the day and convert it into direct current (DC) electricity.The electrical energy is then stored in rechargeable batteries which are typically located within the light pole or a nearby battery box.
Send Inquiry
The Advantages Of 80W Solar Street Light With Pole And Battery

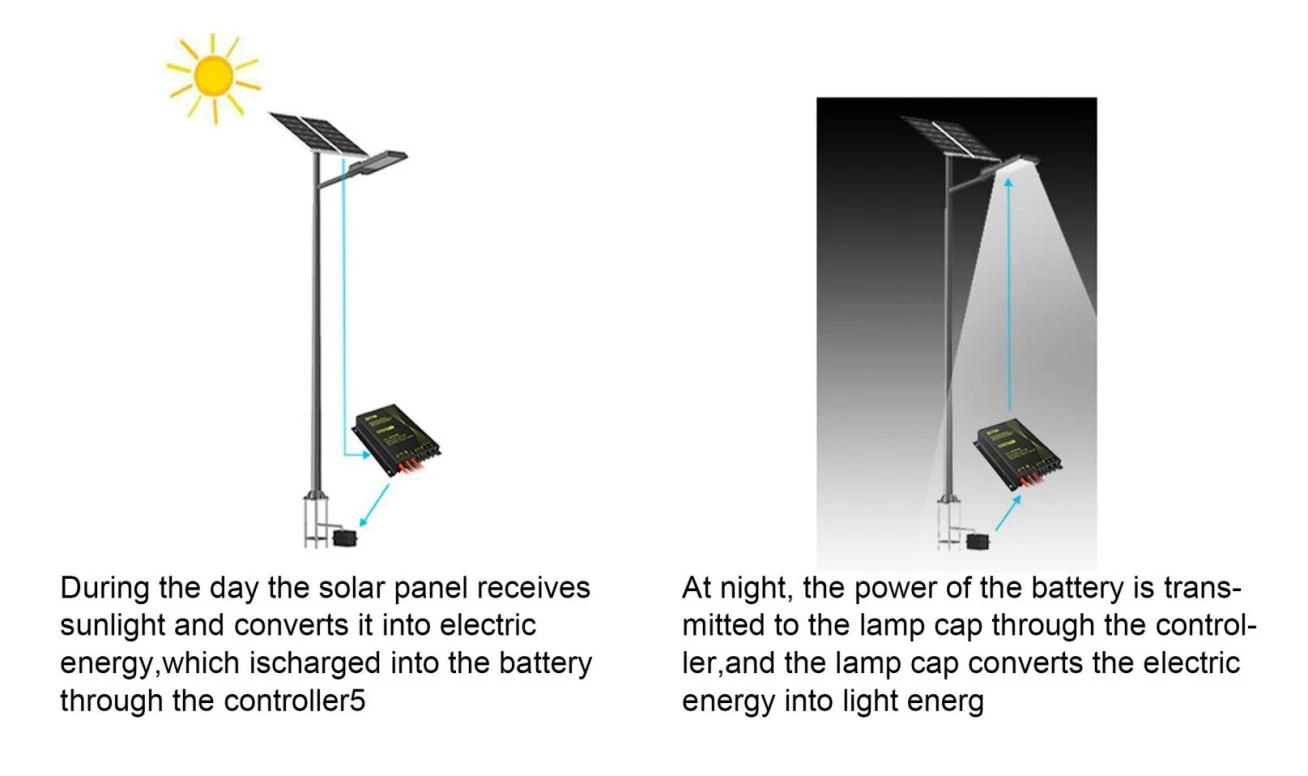

The operation of solar street light involves the conversion of sunlight into electrical energy through the solar panels installed on the top of the light pole. These panels absorb the sunlight during the day and convert it into direct current (DC) electricity.The electrical energy is then stored in rechargeable batteries which are typically located within the light pole or a nearby battery box. These batteries act as a backup power source that can be used during cloudy or rainy days.During the night, a light sensor or time control device activates the light fixture, and the stored electrical energy is used to power the LED (light-emitting diode) lamps.

product-1308-776



How To Design Outdoor Solar Street Lamp

When design outdoor solar street lamp,Forever-Lighting always consider all factors and scientific data:such as shading factor,latitude,weather etc,also based on the solar radiation and black data collected from NASA website,and considering solar radiation in Summer and in Winter,so that we could assure a reliable solar led street light solution for our all customers.



► Design Factors

product-160-160

product-205-205

product-182-182

product-128-134

product-131-132

product-140-131

product-138-138

Shading Factor

Latitude

Weather

Dust

Wind Speed

Temperature

Humidity



► Solar Conditions



Annual Averaged Insolation Incident On A Horizontal Surface (kWh/m2/day)

22-year Average

Oceania

Asia

Africa

America

Europe

5.343

4.979

5.415

5.322

3.497

Equivalent Number Of NO-SUN Or BLACK Days (days)

7 day Average

Oceania

Asia

Africa

America

Europe

3.468

2.847

2.388

2.782

3.474

80W solar Street Lighting Specification

► The 80W solar street light is an outdoor lighting solution that utilizes solar energy to power its LED light source. It is equipped with a solar panel, battery, and other components that work together to generate and store electricity during the day, and illuminate the area at night. The 80W capacity of the solar street light indicates the power output of its LED light source, which will provide sufficient lighting for residential or commercial applications. This type of solar street light is commonly used for lighting streets, parking lots, gardens, and other outdoor areas.

Components

10M Pole 80W LED Solar Street Light specs

Life Span

QTY

1

Solar Panel

270W/36V,Mono Crystalline,>22.12% Efficiency.

>25years

1pc

2

LED Lamp

80W-24V,Phillips Lumileds 3030,160LM/W,3700K-6500K,IP66-IP68

>80,000hrs

1pc

3

Lighting Pole

10M conical,single arm,Q235 Steel,Hot dip galvanized,Powder coating,Rust Proof.

>25years

1pc

4

Solar Panel Bracket

Detachable,Q235 steel,Hot dip galvanized,Powder coating,Rust Proof.

>25years

1pc

5

Foundation Kit

Detachable,Q235 steel.

>25years

1pc

6

Charge Controller

15A, Automatic dusk to dawn auto dimming

>8years

1pc

8

Battery

Option 1:120AH/12V*2PCS GEL battery,Free Maintenance,Deep cycle,Gel type.

>10years

1pc

Option 2:84AH/25.6V LifePO4 battery,Lighter Weight,Longer Cycle Lifespan,Lithium type.

5~10years

1pc

9

Battery Box

GEL battery:Underground battery box

>5years

1pc

Lithium battery:top or hang on the pole,hold 1 battery.

>10years

1pc

10

Cables

2*1.5mm²,from LED lamp to controller

>20years

3-8M

2*4mm²,from solar panel to controller

2-8M

2*4mm²,from solar battery to controller

2-5M

Working :10-12hrs/night at intelligent working mode*2-3 overcast days,5.0KWH/M²/day.

Noted:pole height 3M to 12M for solar street light choosing,15M-50M for high mast pole.

LED power 15W to 150W for solar street light choosing.

Customized design is available.

Solar street light with remote function is optional.



Main Components Features and Benefits

► SOLAR STREET LIGHT FIXTURE OPTIONS

FOREVER LIGHTING offers high lumen output options for fixtures ranging from 30W=4500 lumens to 200W=30,000 lumens, an extremely bright solution that illuminates larger area of coverage with brighter results.




►  HIGH-QUALITY SOLAR LED STREET LIGHT FIXTURES

FOREVERLIGHTING utilizes LUMILLEDs for the best bright solar street lights results. Every street light fixture has high CRI (color rendering index) lights to illuminate subjects and grounds in natural, clear light. LEDs are proven extremely efficient in comparison to competing light technologies (such as CFL and HPS). Other lights don't last as long or cost as much as an LED light.

product-703-396



IP66 SOLAR STREET LIGHT BATTERIES




FOREVER LIGHTING offers deep-cycle gel batteries or lead acid battery or lithium battery, a tried-and-true technology perfect for solar powered street lighting to hold a full 5 days of autonomy, so even during the darkest and rainy weeks , the batteries will keep the lights on all night long. An average battery lifespan is about 5-10 years. These batteries have a various of options for placement-opt to put it on top pole,or hang on the pole or at the base of the pole with galvanized battery box .Or you can choose to bury the batteries for higher security, a cleaner presentation, and protection from the elements.

product-540-203



PHOTOVOLTAIC SOLAR PANELS


▼ Our photovoltaic (PV) panels deliver the proper amount of electricity to the LED fixture and battery when needed. Our high-quality solar panels are composed of monocrystalline silicon, which provides at least 5 percent performance over other technologies. Made of 99.9 percent pure silicon, they are specially-developed panels that absorb high levels of solar power by absorbing photons, or units of light from the sun,with the efficiency of the solar panels is up to max 22.5%.

product-1054-843



GALVANIZED STEEL POLES


Our street light pole's material:Commonly Q235B/A36,and Q345B/A572,Q460,ASTM573 GR65, GR50 ,SS400, SS490, ST52 for optional

Our poles with intelligent robot welding: No crack, no leakage welding or bite edges,it's smooth welding without the concavo-convex fluctuation or any welding defects. Our steel poles with hot dip galvanizing and powder coated to anti-rust and anti-corrosion with longer lifespan. Our solar street light steel poles are beefy, substantial poles that can withstand hurricane-force winds and destructive forces. They're perfect for streets since they can resist strong impacts.

product-1024-1024



CHARGE CONTROLLER:MPPT/PWM/HYBRID for optional


12/24V DC automatically according to the system The charge controller takes an important role in solar street light technology,it makes our solar street light automatic turn on/off,it has modify the timer and dimming function,and over charging/discharging protection.

Our IP68 waterproof charge controller with timing control system which allows to change the configuration setting, including light performance level, power and stage-length to save energy in order to increase the lifespan of the batteries.

product-1060-498



ANCHOR BOLTS :optional






The Anchor bolts buried underground by concrete make the whole solar street light set more strong,and the material of anchor bolts is engineering steel Q235,hot-dip galvanized/non galvanized for alternative, non galvanized,also,folding anchor bolts to save the space is available as current market's need.

product-285-321



SOALR PANEL BRACKET:3 types commonly used,customized is available


product-326-326



product-326-326



product-326-326



BATTERY BOX POSITION:


product-800-600
product-800-600
Customized Solar Lighting Solution For Local Project

Dialux software can help provide a more accurate simulation and analysis of the lighting performance and coverage.

We offers solar street light 80w as your required lighting levels, and specific project requirements to ensure that it meets your lighting needs effectively.

So,our Yangzhou Forever Lighting Co.,ltd has always insisted on DIALUX simulation for customers.Choose branded solar street light,choose Yangzhou Forever Lighting Co.,ltd,welcome to contact us.



product-799-488

product-1060-603



Hot Tags: 80w Solar Street Light, China 80w Solar Street Light manufacturers, suppliers, factory, operation of solar street light, 80w Solar Street Light, solar street light 80w, 80w Design solution, outdoor solar street lamp
