Street Light Luminaire

The Modular IP67 LED street light is an ideal lamp for outdoor installation on the street. It can be immediately installed on the original electric pole for bright your home,your city,your country and your life.
Send Inquiry
b ENEFITS&FEATURES

The Modular IP67 LED street light is an ideal lamp for outdoor installation on the street. It can be immediately installed on the original electric pole for bright your home,your city,your country and your life.

This LED roadway luminaire is made of high quality die-casting aluminum, resistant to corrosion.

This IP67 LED street light has a lifespan of more than 80,000 hours.

The lens of the lamp is made of good materials, resistant to high heat, impact, UV resistant.

IP67 protection against water and dust.

1 Modular, 2 Modulars, 3 Modulars, 4 Modulars,5 Modulars and 6 Modulars is optional.

Surge protection(SPD),Photocell with Nama/Zhaga base.

It is quick and easy to replacing the power supply , and only needs to be manually plugged and unplugged the connector.

Daily maintenance only requires a screwdriver, greatly reducing maintenance costs.



SPECIFICATION

Model

Modular-TF01

Modular-TF02

Modular-TF03

Modular-TF04

Power

60W-120W

90W-180W

120W-240W

150W-300W

Input Voltage

90V-305V

90V-305V

90V-305V

90V-305V

Frequency

50/60Hz

50/60Hz

50/60Hz

50/60Hz

Power Factor

>0.95

>0.95

>0.95

>0.95

LED Chip

LUMILEDS/CREE etc

LUMILEDS/CREE etc

LUMILEDS/CREE etc

LUMILEDS/CREE etc

LED Lume

150LM-180LM/W

150LM-180LM/W

150LM-180LM/W

150LM-180LM/W

C.T

2700K-6500K

2700K-6500K

2700K-6500K

2700K-6500K

Color Rendering Index

CRI>70

CRI>70

CRI>70

CRI>70

Working Temperature

-35°-70°

-35°-70°

-35°-70°

-35°-70°

IP

67

67

67

67

IK

08

08

08

08

Operating Humidity

10%-90%

10%-90%

10%-90%

10%-90%

Anti-electric shock Rate

ClassⅡ

ClassⅡ

ClassⅡ

ClassⅡ

Material of Lens

Imported PC

Imported PC

Imported PC

Imported PC

Body Material

ADC12

ADC12

ADC12

ADC12

Installation dim

60MM

60MM

60MM

60MM

Size

690*356*125MM

770*356*125MM

850*356*125MM

930*356*125MM

Installation height

6-8M

8-10M

8-10M

10-12M

Lifespan

>80000hrs

>80000hrs

>80000hrs

>80000hrs

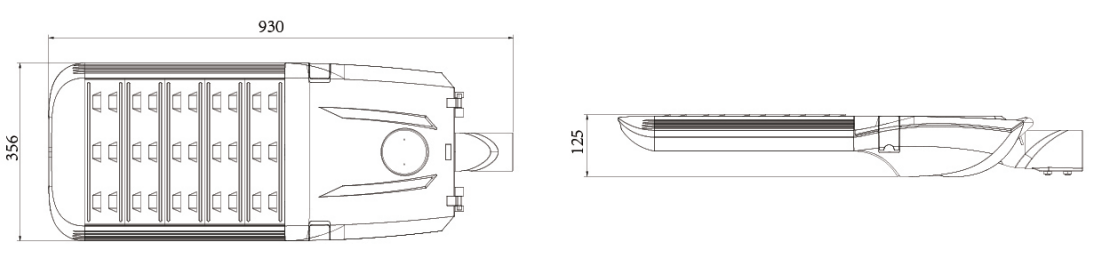

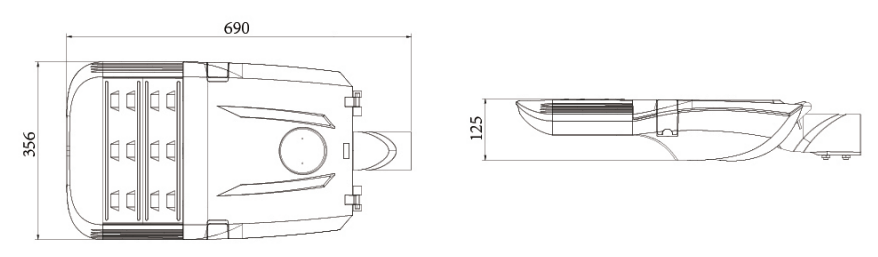

DEMENSION DIAGRAM

product-1267-603

product-878-257

product-956-271

product-1047-267

product-1098-260

product-669-1181

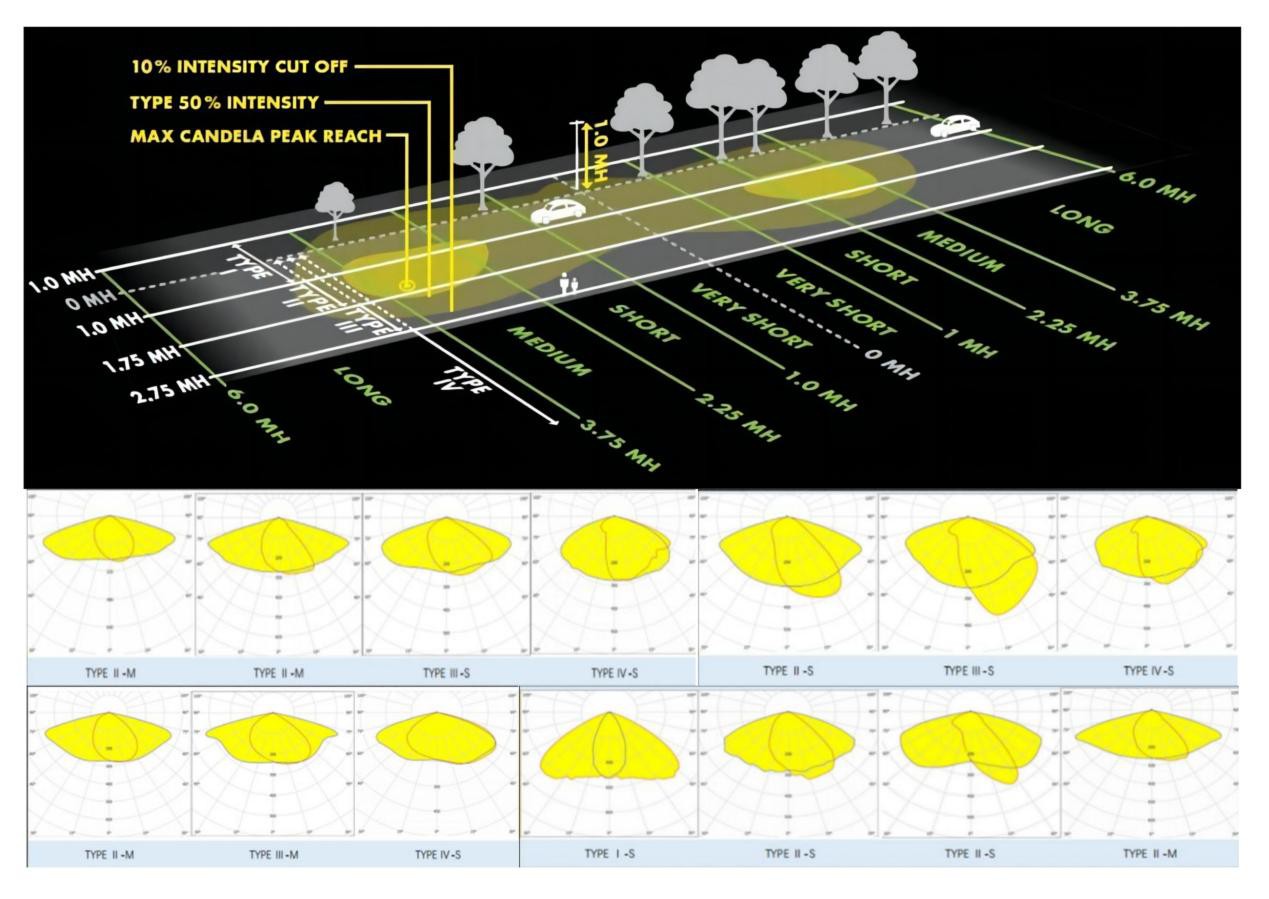

LIGHT DISTRIBUTION

product-1269-899
