100w All in One Solar Street Light
Benefits&Features
100w all in one solar street light as the most classic model of solar led street light,Prime Series all in one light is accredited by government customers in many countries.
Here are highlights of 100w all in one integrated solar street light:


Datasheet
The power range of street light all in one can vary depending on the model and specifications. The typical power ranges can be anywhere from 10 watts to 100 watts. However,our Prime Series integrated solar street light with flexible and big battery box design,we extend the max power to 120w.
Below is our data sheet for integrated solar street light include 100W all in one solar street light.
|
Solar Panel |
Solar panel(mono crystalline silicon) 18V |
||||||
|
60W |
60W |
70W |
80W |
110W |
120W |
160W
|
|
|
LED power |
30W |
40W |
50W |
60W |
80W |
100W |
120W |
|
Battery Capacity |
LifePO4 battery |
||||||
|
12.8V 24AH |
12.8V 24AH |
12.8V 30AH |
12.8V 30AH |
25.6V 24AH |
25.6V 36AH |
25.6V48AH |
|
|
Chip Lumen |
130~150 lm/w |
||||||
|
MPPT Controller Current |
5A |
10A |
10A |
10A |
10A |
15A |
15A |
|

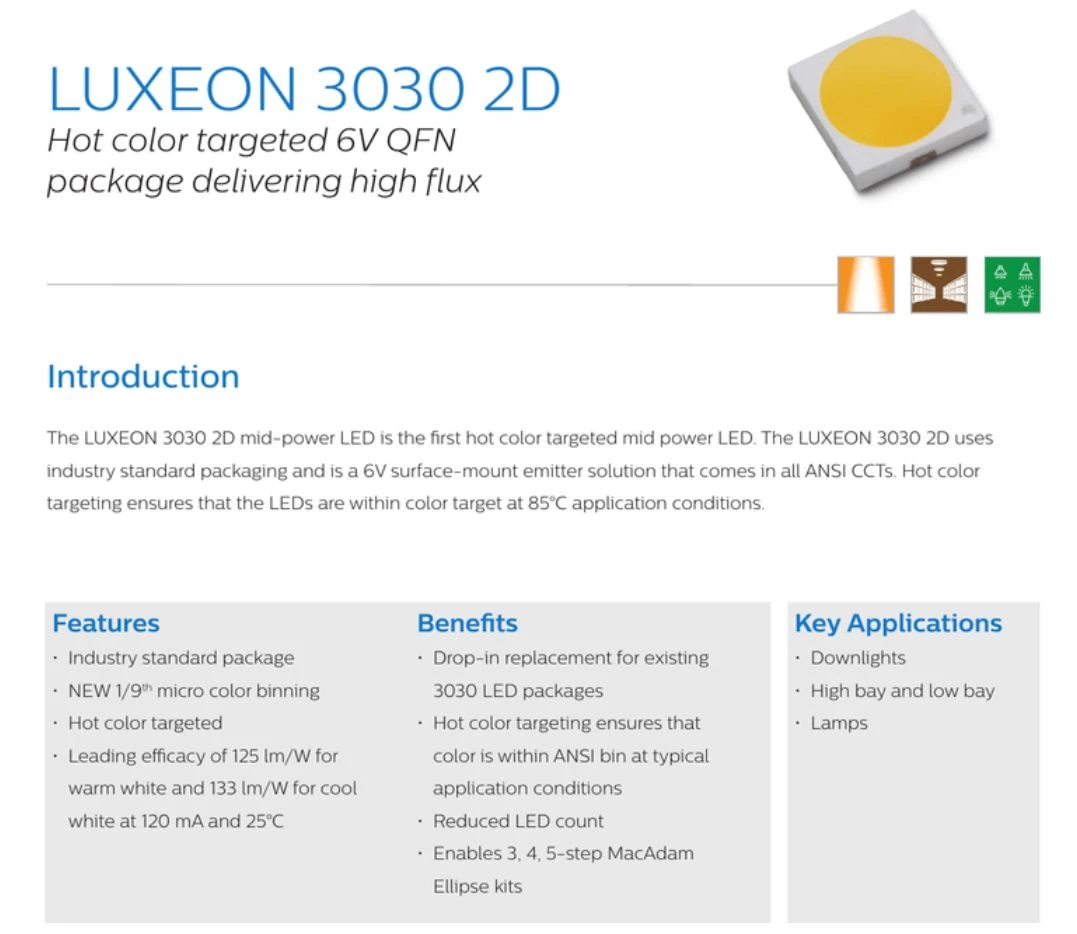

Led Chips Brand |
LUMILEDS |
||||||
|
Led Life Time |
80000hours |
||||||
|
Viewing Angle |
70*120° |
||||||
|
Work Time |
6-8hours per day,2-3 days back up |
||||||
|
Working Temperature |
-30℃~+70℃ |
||||||
|
Color Temperature |
3000-6500k |
||||||
|
Mounting Height |
4-5m |
6-7m |
7-8m |
7-9m |
8-10m |
8-10m |
8-10m |
|
Space between Light |
10-15m |
15-20m |
20-25m |
20-25m |
25-30m |
30-35m |
30-35m |
|
Lamps Material of main body |
aluminum alloy |
||||||
|
Certificates |
CE / ROHS / IP65 |
||||||
|
Product Warranty |
3 years |
||||||
|
G.Weight |
15.5kg |
15.5kg |
17.5kg |
20.5kg |
31.5kg |
32.5kg |
38.5kg |
|
PIR Sensor |
YES |
||||||
Diameter Diagram
We developed 4 different sizes of all in one solar street light for your various lighting requirements.Below is four led modules design with led power range from 100-120W.



Technical Specification





Hot Tags: 100w all in one solar street light, China 100w all in one solar street light manufacturers, suppliers, factory, integrated solar led street light, All In One Solar Light, solar light all in one, 100w All in One Solar Street Light, 3 in one solar street light, 60w All in One Solar Street Light
FAQ:
What is the difference between solar street lights and normal street lights?
The main difference between solar street lights and normal street lights is their source of power. Solar street lights are powered by the sun, as they have photovoltaic panels that collect sunlight and convert it into electricity to power the lights. On the other hand, normal street lights are typically connected to the electrical grid and rely on electricity from power plants.
Here are some other differences:
► Energy Efficiency: Solar street lights are more energy efficient compared to normal street lights. They operate using renewable energy from the sun, which reduces their carbon footprint and dependence on fossil fuels.
► Installation: Solar street lights are easier to install since they do not require complicated wiring and connections to the electric grid. They can be placed in any location with access to sunlight, without the need for infrastructure modifications. Normal street lights, on the other hand, require extensive electrical work and infrastructure to connect them to the electrical grid.
► Cost: While the upfront cost of solar street lights is usually higher, they have lower operational costs in the long run since they do not rely on electricity from the grid. Normal street lights require ongoing electricity expenses, maintenance, and repairs.
► Reliability: Solar street lights may be less reliable during periods of low sunlight or inclement weather as they depend on sunlight to recharge their batteries. However, advancements in technology and the use of efficient batteries have improved their reliability. Normal street lights do not face this issue, as they are consistently powered by the electrical grid.
Environmental Impact: Solar street lights have a lower impact on the environment since they utilize renewable energy and do not release greenhouse gas emissions. Normal street lights, on the other hand, contribute to carbon emissions from the electricity generated by power plants.
In summary, solar street lights offer a more sustainable and cost-effective lighting solution that can be easily installed in remote areas or areas without access to the electrical grid. Normal street lights, while widely used, rely on conventional electricity and have higher operational costs and a larger environmental impact.
